LHD Underground Loader
>
|
|
| Place of Origin | CHINA |
| Brand Name | DERUI |
| Certification | ISO 9001 |
| Model Number | DRWJ-3 |

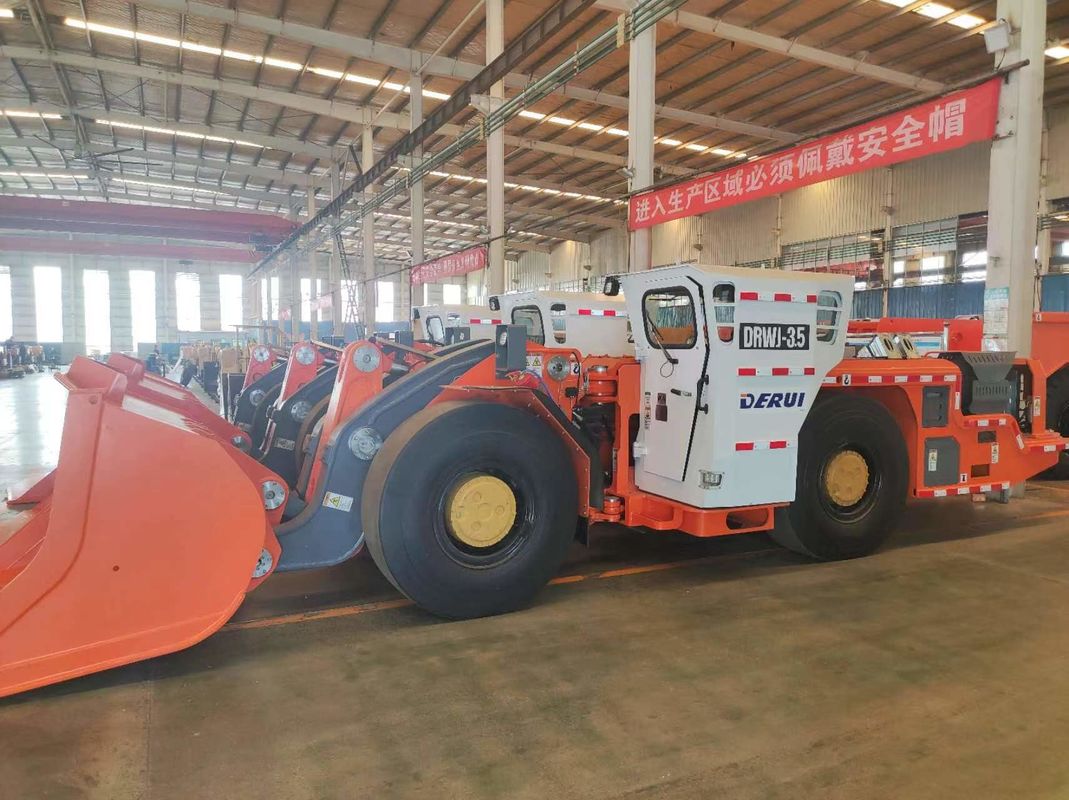

The DRWJ-3 A Heavy-Duty Underground LHD Machine For Demanding Mine Environments
The DRWJ-3 is a robust machine LHD loader with a 3.5 m³ bucket (latest released model DRWJ-3.5 is with 6.8 Ton payload and 3.5m³ bucket). It is a diesel-powered heavy-duty machine intended for the most demanding mine environments. The DRWJ-3 is designed for small to medium size openings for load and carry applications.
The rugged powertrain and high lifting design simplifies underground truck loading. the DRWJ-3.5 currently offers the largest bucket, most powerful engine and best climb performance in its class.
The LHD carries 6.5-6.8 tons or 3.0-3.5 m³. It is 9.200 mm long in driving position, 2.355 mm wide at the bucket and 2.255 mm high at the cab when fully loaded. This makes the DRWJ-3 suitable for narrow vein operations.
The DRWJ-3.5 features Z-bar linkage and a reinforced boom design for superior breakout force enabling optimal penetration into the pile and fast bucket filling.
TECHNICAL DATA SHEET
| NO | ITEM | PARAMETER |
| 1 | Standard Bucket Volume | 3m³ |
| 2 | Tramming Capacity | 7000kg |
| 3 | Maxium Shovel | ≥100KN |
| 4 | Maxium Traction | ≥120KN |
| 5 | Maxium Unloading Height | 1793mm |
| 6 | Minium Unloading Distance | 1597mm |
| 7 | Unloading Angle | 40° |
| 8 | Minium Ground Clearance | ≥317mm |
| 9 | Departure Angle | 14° |
| 10 | Rear Axle Swing Angle | ±8° |
| 11 | Minium Turning Radius(external) | ≤5952mm |
| 12 | Climbing Ability (full) | ≥14° |
| 13 | Speed | 1 gear:4.6km/h |
| 2 gear:9km/h | ||
| 3 gear:17.3km/h | ||
| 4 gear :23.6km/h | ||
| 14 | Torque Converter | DANA C270 |
| 15 | Gearbox | DANA R32000 |
| 16 | Drive Axle | DANA16D(NO-SPIN) |
| 17 | Brake System | Spring Brake,Hydraulic Release |
| 18 | Motor Type/power | VOLVO TAD850VE/160KW National level 3 |
| 19 | Size | 9150×2336×2250mm |
| 20 | Weight | 19.2t |
